Top Leader provides complete solutions for the disposable syringe in “nest” (Ready-to-use).

拓领为盒装的一次性预注射器提供完整的解决方案。



The complete solutions will include 完整的方案包括:



l  Sterilization 灭菌：

Top Leader customized VHP Sterilization isolator/hatch for the outer surface of sterile package of the “nest”.

拓领定制的用于盒子的无菌包装外表面灭菌的VHP灭菌隔离器或舱体。

Optional Top Leader E-Beam tunnel (Designed by SUZUKI Japan) for the exterior sterilization of tubs prior to unsealing and opening.

可选拓领E-Beam灭菌隧道（由日本铃木设计），用于开包前盒子外表面灭菌。



l  Unsealing and opening 开包

The operator can manually unseal and open the sterile package of the “nest” inside of the Top Leader Barrier system after the sterilization.

操作者可以在拓领的屏障系统内手工对盒子的无菌包装进行开包。

Optional Top Leader conveyor with the automatic Unsealing and opening arm ( hot melt).

可选拓领的传送带，带有自动开包机械手(热熔)；



l  Loading and Unloading to the filling station 灌装工位的自动上下料

The operator can manually pick “nest” from the tub and transfer to the filling station, then unload back to the tub after the filling inside of the Top Leader Barrier system after the opening.

开包后，操作者可以在拓领的屏障系统内手工把盒子内的托板取出上料到灌装工位，灌装完成后再放回盒子。

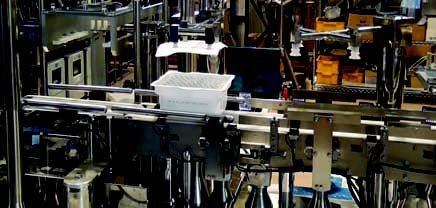

Optional Top Leader PICK & PLACE arm for the Loading and Unloading to the filling station.

可选的拓领PICK & PLACE机械手用于自动对灌装工位上下料



l  Filling and stoppering 灌装和加塞

Top Leader Filling (rotary piston pumps or through peristaltic pumps), vacuum stoppering machine with barrier system.

拓领灌装（旋转柱塞泵或蠕动泵）、真空加塞机，带有屏障系统

Optional Top Leader 100% IPC weighing system with the PICK & PLACE arm and scale for the syringe weighing individually.

可选拓领100%在线称重系统，带有PICK & PLACE机械手和天平用于注射器逐个称重。

l  Discharging for the final product. 最终产品出料

The operator can manually discharge the final tub inside of the Top Leader Barrier system after filling.

操作者可以在拓领的屏障系统内手工对将最终盒子灌装后出料。

Optional Top Leader conveyor with the automatic arm for discharging.

可选拓领的传送带，带有自动出料机械手；



l  Barrier system for whole system 全系统屏障

Top Leader can provide ORABS/RABS+/CRABS for the whole system except the sterilization step (isolator for VHP sterilization).

除了灭菌步骤外（VHP灭菌需要隔离器）拓领提供ORABS/RABS+/CRABS

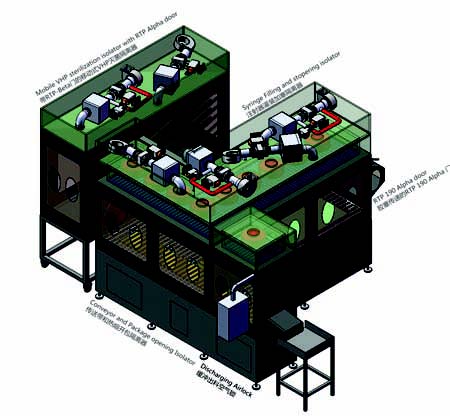

Top Leader suggest the isolator for whole systems are the best choice. RTP door for stopper and sterile liquid transfer into the isolator should be used. 拓领建议，全系统都使用隔离技术是一个最好的选择。使用RTP门技术用于胶塞和无菌液体的传递进入隔离器内。
